Description

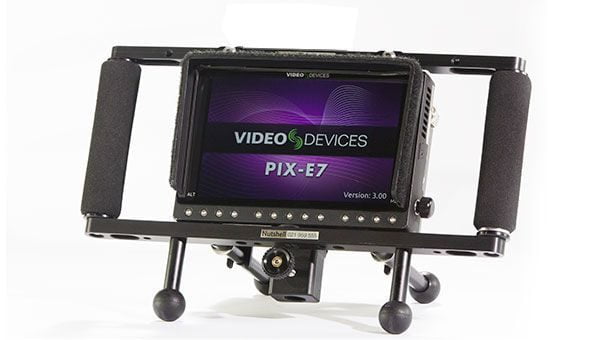

PIX E7 4K Monitor/Recorder

PIX E7  (7″) 4K recordable monitor in a cage 1 x 256 Gb SSD

Auto record from ARRI Run/Stop

The 4K-compatible PIX-E7 offers  ProRes codecs from Proxy to 4444 XQ.  12-bit codec preserves the dynamic range of today’s high performance digital image sensors.

PIX E7 4K Monitor/Recorder can record 4K up to 30 fps, UHD up to 30 fps and 1080p or 720p up to 120 fps.

PIX E7 4K Monitor/Recorder can record H.264 low data rates and small file sizes, perfect for web streaming, email, and faster file uploads. Like ProRes, H.264 may be recorded to the inbuilt SpeedDrive. Otherwise, dual codec recording capability makes ProRes recording to the SpeedDrive and H.264 is simultaneously. While recording 4K in ProRes, the monitor will automatically scale the 4K to 1080p for recording H.264, thereby reducing its file size even further. If a LUT is active, it will be baked into the recorded H.264 file, but will not impact ProRes recordings. This is ideal for when you want to simultaneously record a full dynamic range, log-encoded ProRes master file for the edit suite and a REC709 H.264 file suitable for normal viewing.
