Teradek Bolt 3000

Product Description

Teradek Bolt 1000

Teradek Sidekick

In the box

Teradek Bolt 3000 Kit 1TX, 1RX
Cables and noga arms to make it work.
V-Lock Battery Plate with Pass through power

Additional RX available
900M Range

Email to a friend

Category: Wireless

Description
Insurance

Description

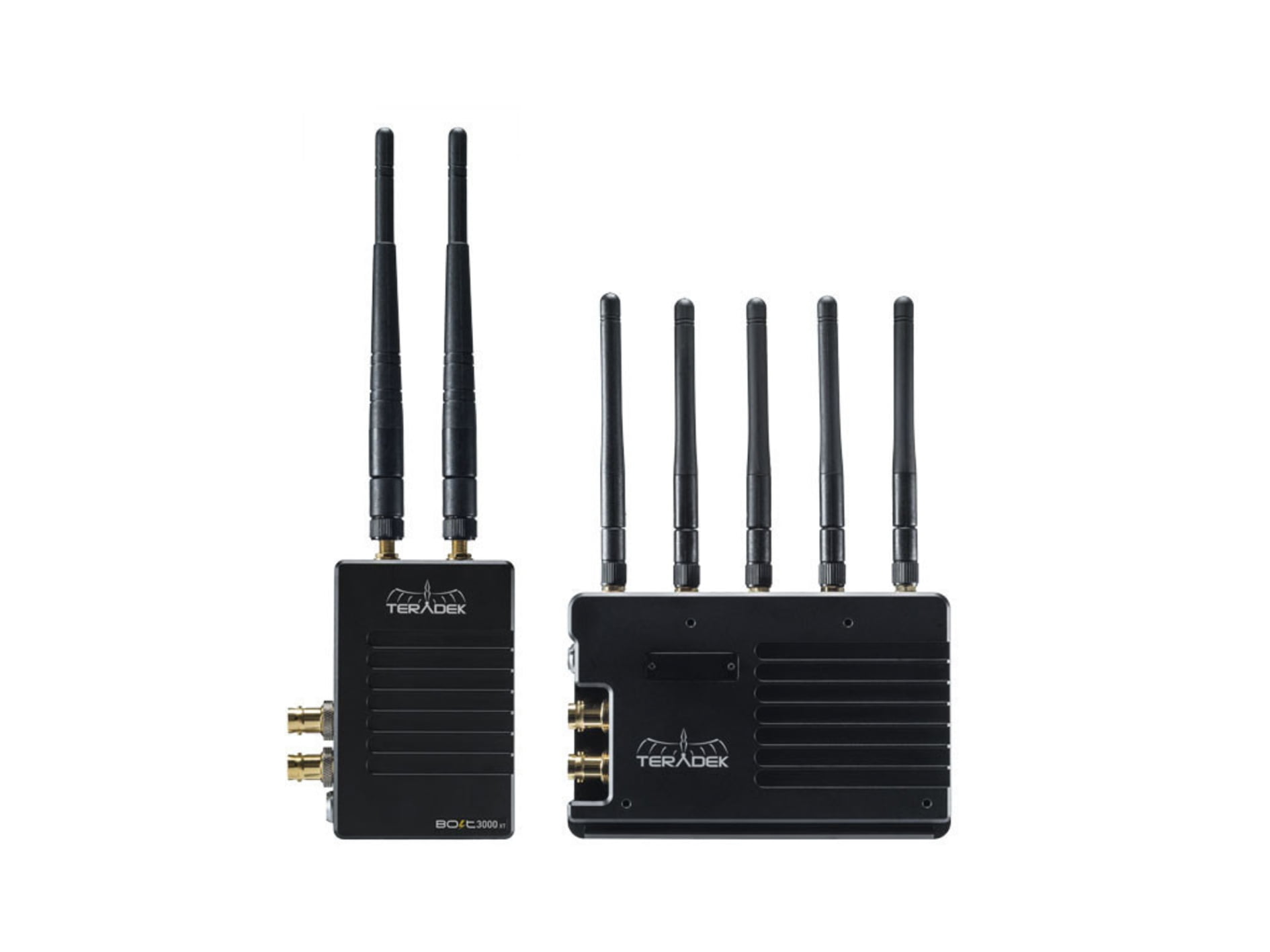

Teradek Bolt 3000 Kit 1TX, 1RX Kit

Product Highlights

Compatible with 3rd generation Bolt 3000, Sidekick II, and 703 Bolt
Professional software features: 3D LUTs, 5GHz spectrum analyzer, manual channel selection
Dual input (SDI + HDMI) and SDI loop on the TX
HDMI and Dual 3G-SDI outputs on RX

Transmit uncompressed 1080p video wirelessly over 3000 feet line-of-sight with the Teradek Bolt Pro 3000 Wireless Video Transmitter/Receiver Set. Included in this set are a Teradek Bolt Pro 3000 transmitter and receiver, both equipped with 3G-SDI input/output. The transmitter can pair with and multicast to up to four receivers. Teradek Bolt 3000. When transmitting uncompressed video, latencies of less than one millisecond can be achieved if no other video processing is necessary.

Transmitting across the 5 GHz frequency range, the pair utilizes Dynamic Frequency Selection (DFS) to find a clean signal between the transmitter and receiver. This is desirable when working in areas with crowded frequencies. The transmitter and receiver are equipped with SDI ports, and the transmitter features a loop-through SDI output. The USB GRAB engine streams the uncompressed video straight out of the receiver and into a PC for immediate recording. The included waterproof case with custom-cut foam carries the components during transport and storage.

Transmission Distance

The Bolt Pro 3000 transmitter and receiver pair can transmit 1080p60 video up to 3000′ line-of-sight, with less than 1 ms of latency when not converting video formats.

Cross Conversion

Using the transmitter, which has an SDI input, to send to an optional receiver that has an HDMI output, or an optional transmitter with an HDMI input with the included receiver, which has an SDI output, will essentially cross convert your video signal during transmission.

Durability

The hardened aluminum chassis is designed to withstand the rigors of production, and features 1/4″-20 threaded mounting holes.

USB Grab Engine

The built-in USB port on the receiver enables direct connection to a computer, so you can capture video directly from the receiver into your computer over USB 3.0. With this video available, rough edits can be made even before the footage is offloaded from the camera.

OLED Info Screen

A built-in OLED information screen is built into the receiver. This enables rapid setup and confirmation of your settings.

3D LUT Support

Utilizing the OLED screen, you can apply 3D LUTs with the press of a button. Upload your own LUTs using the free Bolt Manager software, or select from several built-in presets using Bolt’s OSD.

20 and 40 MHz Channels

You can select to transmit in 20 or 40 MHz channels. However, please note that while 20 MHz channels allow you to operate more wireless systems at once in a single location, while offering a more robust wireless link in challenging RF conditions, they do not support audio transmission, as well as interlaced, PsF, and 1080p 60/50 frame rates. The 40 MHz channels support audio, interlaced, PsF, and 1080p 60/50.

Timecode and Metadata Support

All 3G-SDI Bolt models support metadata, timecode, and start/stop flags from many camera manufacturers, including RED, ARRI, Canon, Sony, and Panasonic.

Dynamic and Manual Frequency Selection for Teradek Bolt 3000

You can select either dynamic or manual frequency.
